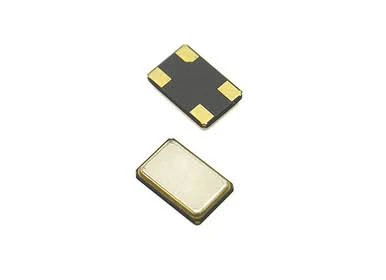

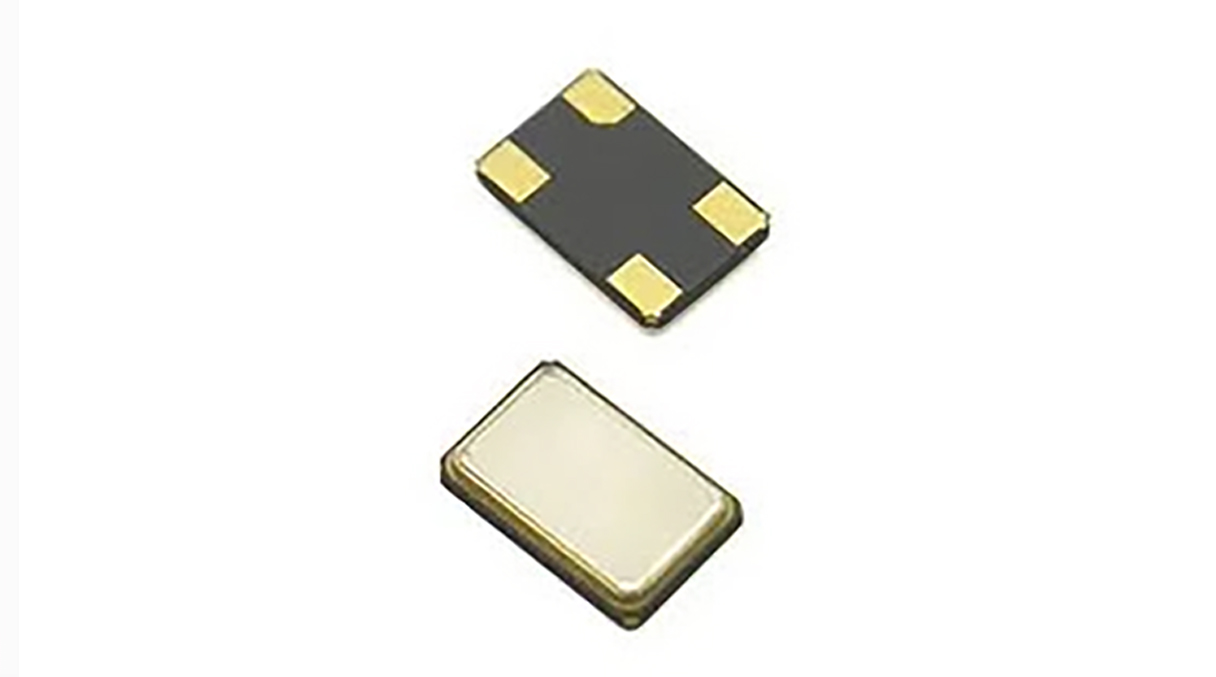

The YSX531SL 27MHz 5032 SMD Crystal from YXC (or equivalent series) is a high-precision quartz crystal resonator designed to provide stable and accurate clock signals for high-frequency digital and communication systems.
With its 5032 package (5.0 × 3.2 mm), this crystal offers excellent frequency stability, low phase noise, and reliable startup performance. The 27MHz frequency is commonly used in RF modules, communication devices, and high-speed microcontroller systems, making it ideal for embedded and wireless applications.
Key Features
Electrical Characteristics-
Frequency: 27 MHz
Frequency tolerance: typically ±10 ~ ±20 ppm
Load capacitance: typically 18 pF
Low ESR for stable oscillation
Performance-
High frequency stability
Low phase noise
Fast and reliable startup
Stable across temperature variations
Mechanical-
Package size: 5032 (5.0 mm × 3.2mm
Surface Mount Device (SMD)
Durable and compact construction
Compatibility-
Suitable for RF modules and communication circuits
Works with microcontrollers and clock generation circuits
Package Information-
Type: Quartz Crystal Resonator
Size Code: 5032
Dimensions: Approx. 5.0 mm × 3.2 mm
Mounting Type: Surface Mount (SMD)
Package Contents-
1 × 27MHz YSX531SL 5032 SMD Crystal
Applications-
RF communication modules
Wireless devices and transceivers
Embedded systems and MCUs
Clock generation circuits
IoT and consumer electronics
Usage Note-
Use with proper load capacitors (~18 pF typical)
Keep traces short and symmetric for stable oscillation
Place close to IC oscillator pins
Datasheet: –Crystal-YSX531SL-8Mhz
