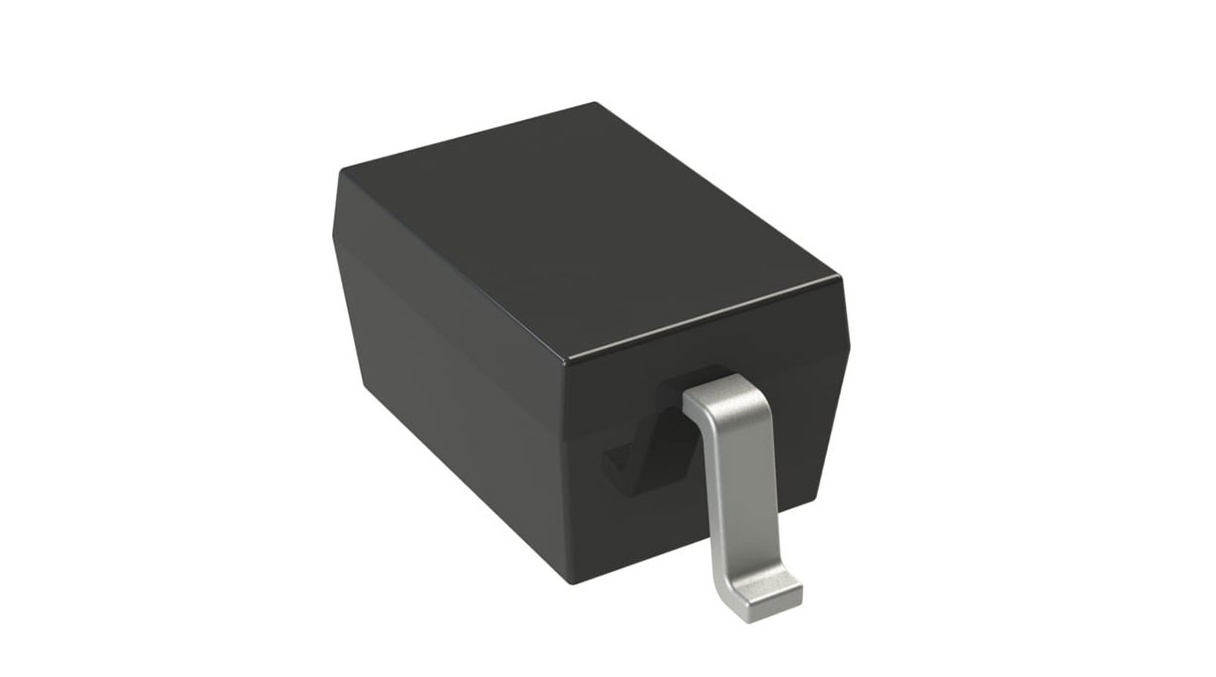

Name: NSR0340HT1G Schottky Barrier Diode 40V 250mA SOD-323 | AuronX
SKU: ESD-340-AX-1
Price: 5.79 INR
Availability: InStock

The NSR0340HT1G is a high-performance Schottky Barrier Diode from onsemi, designed for low forward voltage drop, fast switching speed, and low reverse leakage current. Housed in the compact SOD-323 surface-mount package, it is an excellent choice for space-constrained electronic designs requiring efficient power management and reliable protection.

This diode is widely used in DC-DC converters, reverse polarity protection circuits, voltage clamping, battery-powered devices, and general-purpose high-speed switching applications. Its low forward voltage helps reduce power loss, improving the overall efficiency of portable and low-power electronic systems.

Key Features

Part Number: NSR0340HT1G
Manufacturer: onsemi
Schottky Barrier Diode
Maximum Reverse Voltage (VR): 40V
Continuous Forward Current (IF): 250mA
Low Forward Voltage Drop for improved efficiency
Fast Switching Performance
Low Reverse Leakage Current
Low Junction Capacitance
Compact SOD-323 (SC-76) Surface Mount Package
RoHS Compliant

Applications

DC-DC Buck and Boost Converters
Reverse Polarity Protection
Battery-Powered Devices
Portable Electronics
Voltage Clamping Circuits
High-Speed Switching
Power Supply Protection
General-Purpose Rectification

Package Includes

1 × NSR0340HT1G Schottky Barrier Diode (SOD-323)

Note: Please verify the part number, package type, and electrical specifications before installation to ensure compatibility with your application.

Datasheer-https://www.onsemi.com/pdf/datasheet/nsr0340h-d.pdf

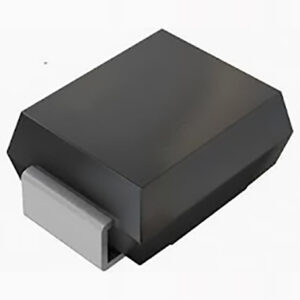

SMBJ26A TVS ESD diode
