Name: SRV05-4HTG ESD protection diode array
SKU: ES-AR-SR05-1.0
Availability: InStock

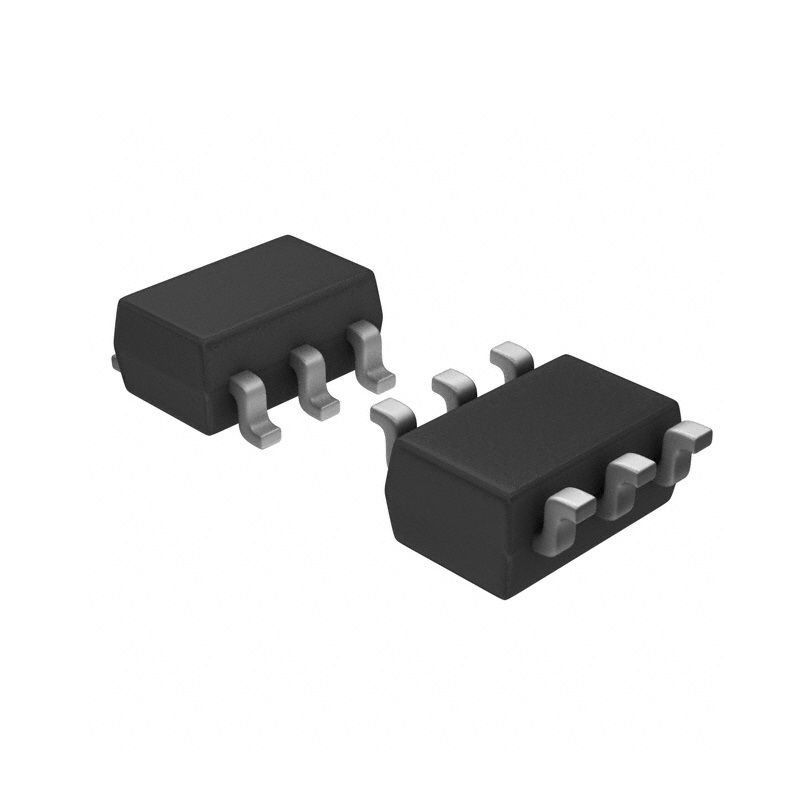

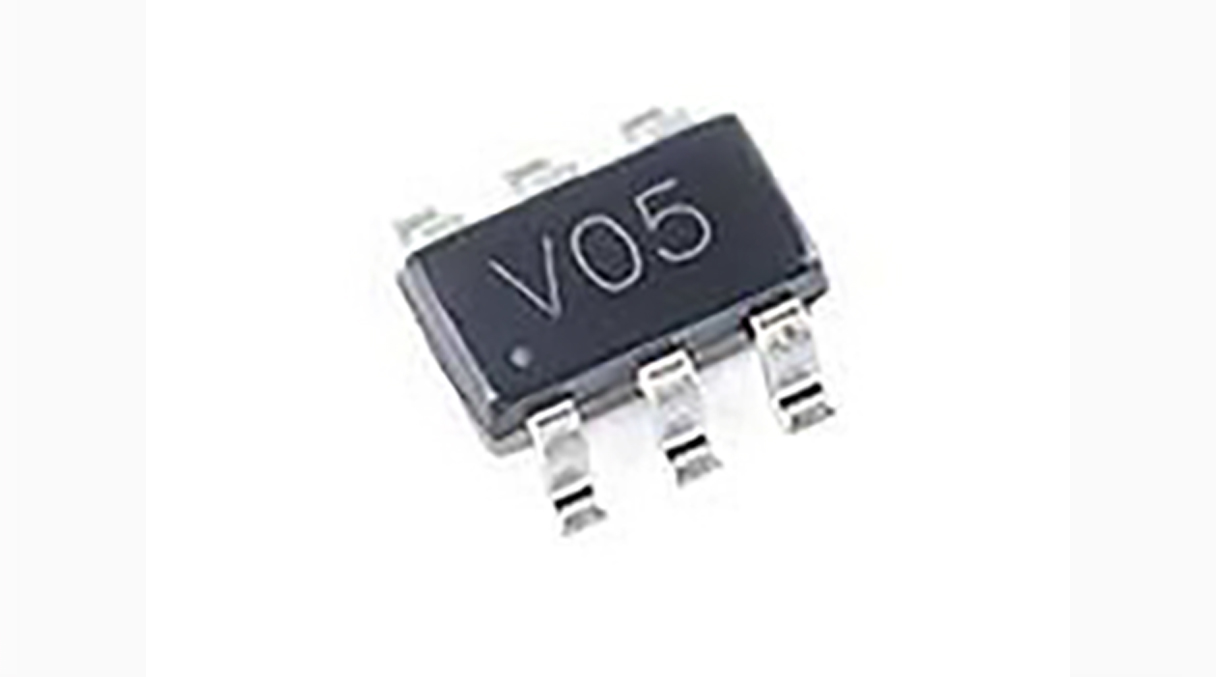

SRV05-4HTG ESD protection diode array

₹9.00 incl. GST

A low-capacitance 4-line ESD protection diode array designed to safeguard high-speed data interfaces from voltage spikes and electrostatic discharge.

Availability: 90 in stock

The SRV05-4HTH from Semtech Corporation is a high-performance ESD protection diode array designed to protect multiple high-speed data lines from electrostatic discharge (ESD) and transient voltage spikes.
This device provides low capacitance, fast response time, and low clamping voltage, making it ideal for protecting sensitive interfaces such as USB, UART, SPI, and other communication lines. Its multi-line protection capability allows safeguarding of up to 4 data lines with a single compact device, reducing PCB space and component count.

Key Features
Protection Capability
Protects up to 4 data line
ESD protection: ±15kV air / ±8kV contact (IEC 61000-4-2 typical)
Fast response time (sub-nanosecond)

Electrical Characteristics
Low capacitance (ideal for high-speed signals)
Low leakage current
Low clamping voltage

Performance
Minimal signal distortion
High reliability under repeated ESD events
Suitable for high-speed interfaces

Mechanical
Package: SOT-23-6 (TH variant)
Surface Mount Device (SMD)
Compact footprint

Compatibility
USB (D+, D− protection)
UART, SPI, I2C lines
GPIO protection
High-speed communication interfaces

Package Information
Type: TVS / ESD Protection Array
Package: SOT-23-6
Mounting Type: Surface Mount (SMD)

Package Contents
1 × SRV05-4HTH ESD Protection Diode Array

Applications
USB port protection
Microcontroller I/O protection
Flight controllers and embedded systems
Communication interfaces (SPI, UART, I2C
Consumer electronics and portable devices

Usage Note
Place as close as possible to connector for effective protection
Keep traces short and direct to ground
Use proper grounding for best ESD performance
Datasheet: -SRV05-4-D
