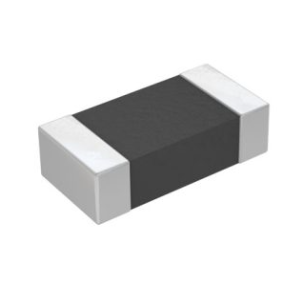

75R (75Ω) ±1% 0603 Resistor

The 0603 75Ω ±1% Resistor from Yageo Corporation (or equivalent brands) is a precision surface-mount chip resistor designed for stable and reliable performance in compact electronic circuits. Manufactured using thick-film technology, it offers accurate resistance, low noise, and excellent temperature stability.
With its 0603-package size, it provides a good balance between compact design and higher power handling compared to smaller packages. It is widely used in digital, analog, and RF circuits for current limiting, impedance matching, and signal conditioning.

Key Features-
Electrical Characteristics
Resistance: 75Ω
Tolerance: ±1%
Power rating: ~1/10W (0.1W) typical for 0603
Low noise and high stability

Performance-
Good temperature coefficient (typically ±100 ppm/°C)
High reliability and long-term stability
Suitable for high-frequency applications

Mechanical-
Package size: 0603 (1.6 mm × 0.8 mm)
Surface Mount Device (SMD)
Compatible with automated assembly

Compatibility-
Suitable for MCU circuits, sensors, RF designs, and power electronics
Works in both analog and digital circuits

Package Information-
Type: Thick Film Chip Resistor
Size Code: 0603
Mounting Type: Surface Mount (SMD)

Package Contents-
1 × 75Ω ±1% 0603 SMD Resistor

Applications-
Current limiting and signal control
Pull-up / pull-down networks
Impedance matching (RF/video circuits, e.g., 75Ω systems)
Voltage divider circuits
Embedded systems and flight controllers

Marking Code (Reference)-
Standard 3-digit code: 750
75 × 10⁰ = 75Ω

Note:-
Smaller SMD resistors (like 0603 and below) usually do not have visible markings
