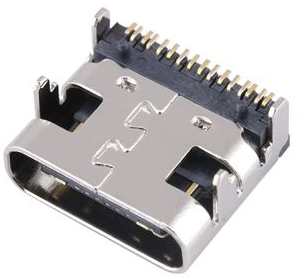

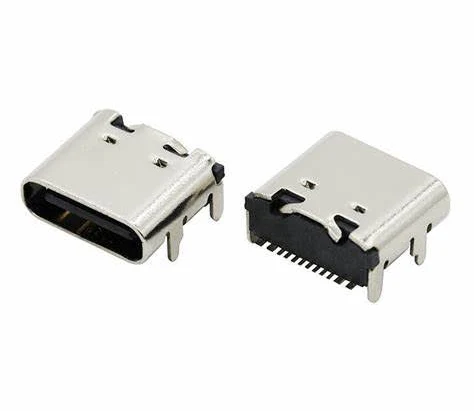

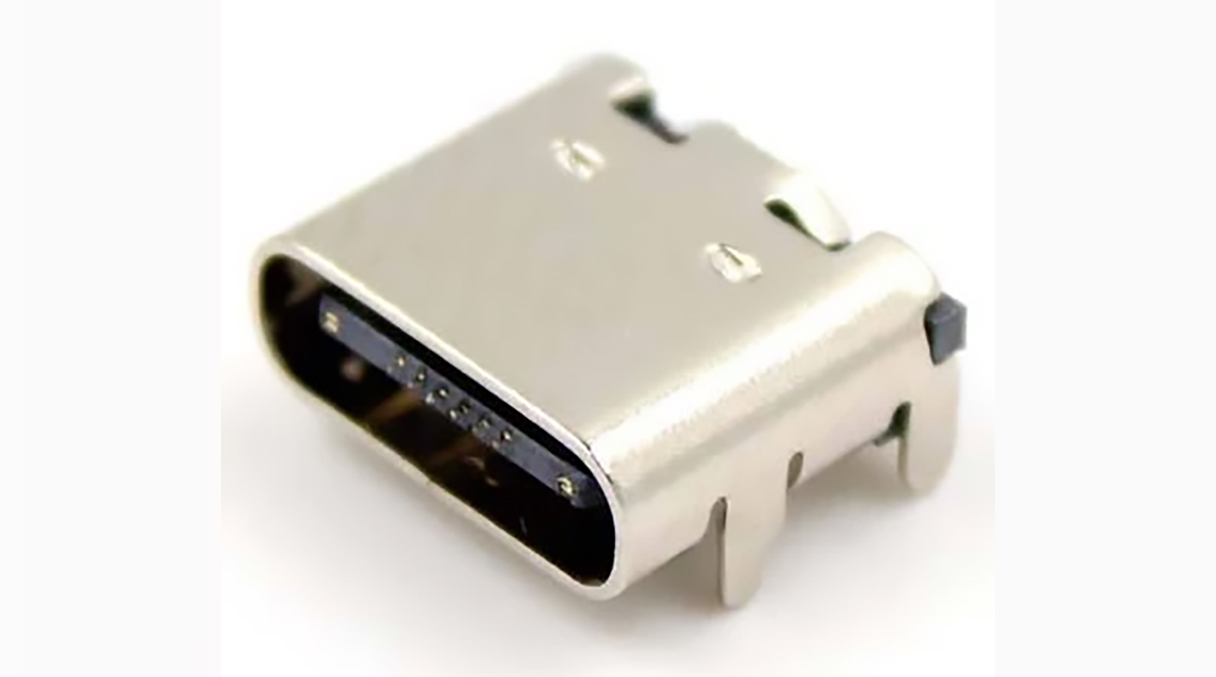

Name: USB 3.1 Type-C 16-Pin Socket
SKU: US-AR-TC-1.0
Availability: InStock

The USB 3.1 Type-C 16-Pin Socket from Amphenol (or equivalent brands) is a compact and versatile connector designed for modern electronic devices requiring high-speed data transfer and efficient power delivery. With its reversible Type-C interface, this connector allows users to plug in cables in either orientation, enhancing usability and reducing wear caused by incorrect insertion. It is an ideal solution for a wide range of applications including embedded systems, development boards, and consumer electronics.This 16-pin USB Type-C socket supports USB 2.0 data lines along with reliable power connections, making it suitable for both communication and charging purposes. Its well-structured pin layout ensures stable signal transmission and consistent performance across various applications. Whether used in microcontroller-based projects or advanced electronic systems, this connector provides dependable connectivity.Designed with durability in mind, the USB 3.1 Type-C 16-Pin Socket is capable of handling a high number of mating cycles. This makes it highly reliable for devices that require frequent plugging and unplugging, such as charging ports and development platforms. The robust construction ensures long-term performance even under continuous use, making it a preferred choice for engineers and product designers.
The compact footprint of this connector allows easy integration into space-constrained PCB designs. It is widely used in modern flight controllers, IoT devices, robotics systems, and custom embedded hardware. Its compatibility with standard USB Type-C cables ensures seamless connectivity with a variety of devices including laptops, smartphones, and peripherals.

In addition to its electrical performance, the connector is designed for easy PCB mounting and soldering. The pin configuration supports secure attachment, minimizing the chances of loose connections or mechanical failure. This makes it suitable for both prototyping and mass production environments.

For developers working on advanced electronics projects, the USB 3.1 Type-C 16-Pin Socket offers a reliable interface for power input and data communication. It is commonly used in STM32 development boards, Arduino-compatible systems, and other microcontroller platforms where stable USB connectivity is essential. Its ability to handle both data and power efficiently makes it a multifunctional component in modern circuit design.

At Auronx, this USB Type-C connector is available for electronics enthusiasts, engineers, and hobbyists looking for high-quality components for their projects. Each unit is tested for quality and performance to ensure reliability in real-world applications. Whether you are designing a new product or upgrading an existing system, this connector provides the flexibility and durability required for modern electronic designs.

If you are searching for a compact, reliable, and easy-to-use USB connector, the USB 3.1 Type-C 16-Pin Socket is an excellent choice. Its combination of performance, durability, and universal compatibility makes it a valuable component for a wide range of electronic and embedded applications.

Key Features-
Electrical Characteristics
Connector type: USB Type-C (Reversible)
Pin count: 16 pins
Supports USB 2.0 data (D+ / D−)
Power support up to 5V (higher with proper PD design)

Mechanical Design-
Reversible plug orientation
High durability (typically 10,000+ mating cycles)
Compact and robust structure

Mounting-
Surface Mount (SMD) + Through-hole shell tabs
Strong mechanical retention
Suitable for automated assembly

Performance-
Reliable contact and low resistance
Stable data transmission
Designed for repeated insertion/removal

Compatibility-
Works with STM32, USB devices, and embedded systems
Compatible with USB charging and communication circuits

Package Information-
Type: USB Type-C Receptacle
Pin Count: 16
Mounting Type: SMD with through-hole support tabs
Orientation: Horizontal

Package Contents-
1 × USB 3.1 Type-C 16-Pin Socket

Applications-
USB communication (STM32, Arduino, ESP32)
Device charging port
Flight controllers and development boards
IoT and embedded systems
Consumer electronics

Usage Note-
Use 5.1kΩ pull-down resistors (CC1 & CC2) for proper USB-C detection
Add ESD protection diodes on D+ / D− line
Ensure proper PCB footprint and mechanical support

Datasheet: –USB-Type-C-16pin-Datasheet
Esternal links – https://cdn.sparkfun.com/assets/e/b/4/f/7/USB-C_Datasheet.pdf
