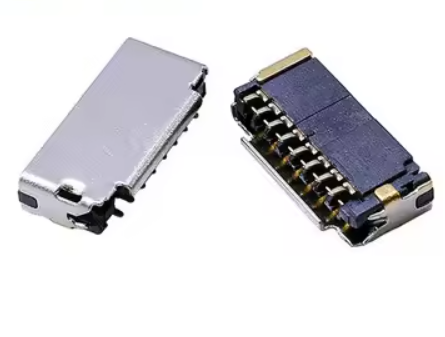

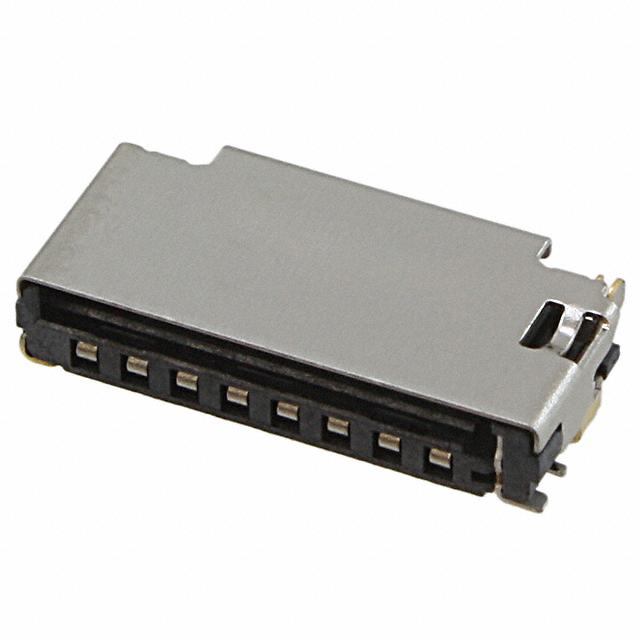

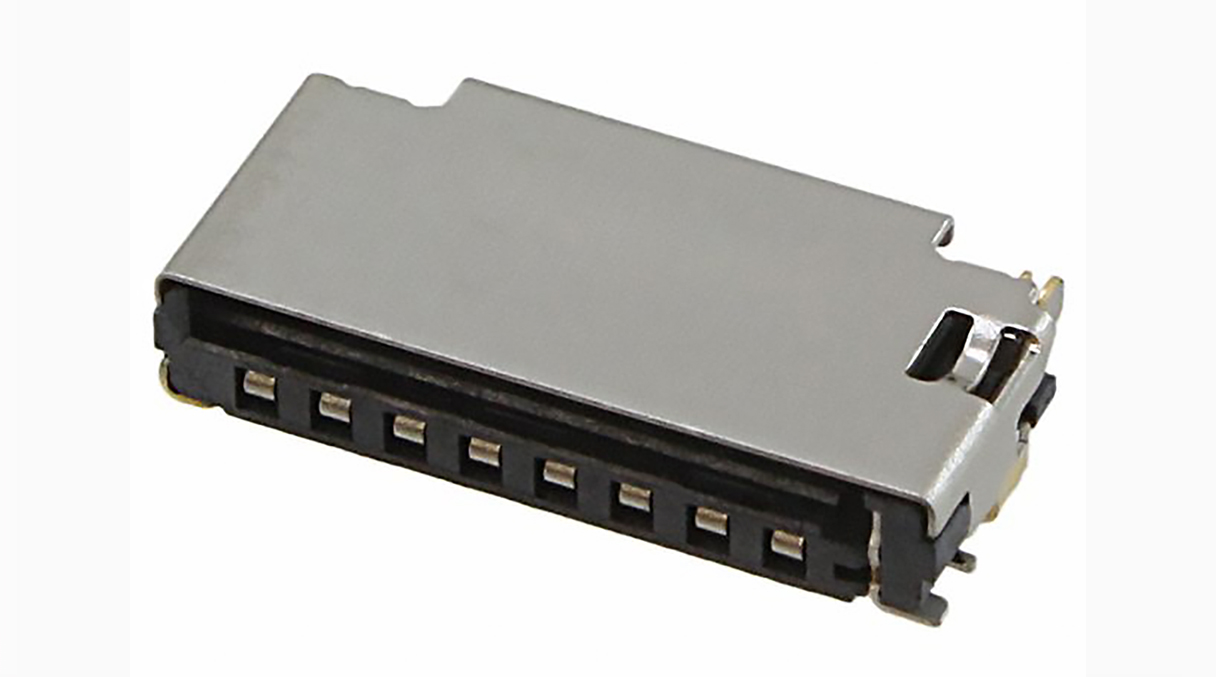

Mini TF (Micro SD) Card Socket 3.75H

₹33.00 incl. GST

A compact 3.75mm height Micro SD (TF) card socket for reliable data storage and high-speed interfacing in embedded systems.

Availability: 89 in stock

The Mini TF (Micro SD) Card Socket 3.75H from Molex (or equivalent brands) is a compact surface-mount memory card connector designed for reliable Micro SD (TF) card interfacing in embedded systems.
With a 3.75 mm height profile, this socket provides a secure and stable connection while maintaining a low form factor. It supports high-speed data transfer and is widely used in applications such as data logging, flight controllers, IoT devices, and multimedia systems.
Its durable design ensures consistent card insertion/removal cycles and stable electrical performance.Key Features-
Electrical Characteristics
Supports Micro SD / TF cards
High-speed data transfer capability
Low contact resistance for reliable communicationMechanical Design-
Height: 3.75 mm (Low profile)
Push-push or push-pull type (variant dependent)
Durable card insertion/removal mechanism
Secure card retentionMounting-
Surface Mount Device (SMD)
Compact footprint for high-density PCBs
Reinforced solder pads for durabilityCompatibility-
Compatible with SPI and SDIO interfaces
Works with STM32, Arduino, ESP32, etc.
Package Information-
Type: Micro SD (TF) Card Socket
Mounting Type: Surface Mount (SMD
Height: 3.75 mm
Card Type: Micro SD / TF
Package Contents-
1 × Mini TF (Micro SD) Card Socket 3.75H
Applications-
Data logging systems
Flight controllers (Blackbox logging
Embedded systems and microcontrollers
IoT devices and smart electronics
Multimedia and storage applications
Usage Note-
Ensure proper ESD protection on SD lines
Route high-speed lines carefully (short and matched
Use proper pull-up resistors for SDIO interface
Datasheet: –Mini TF (Micro SD) Card Socket 3.75H
