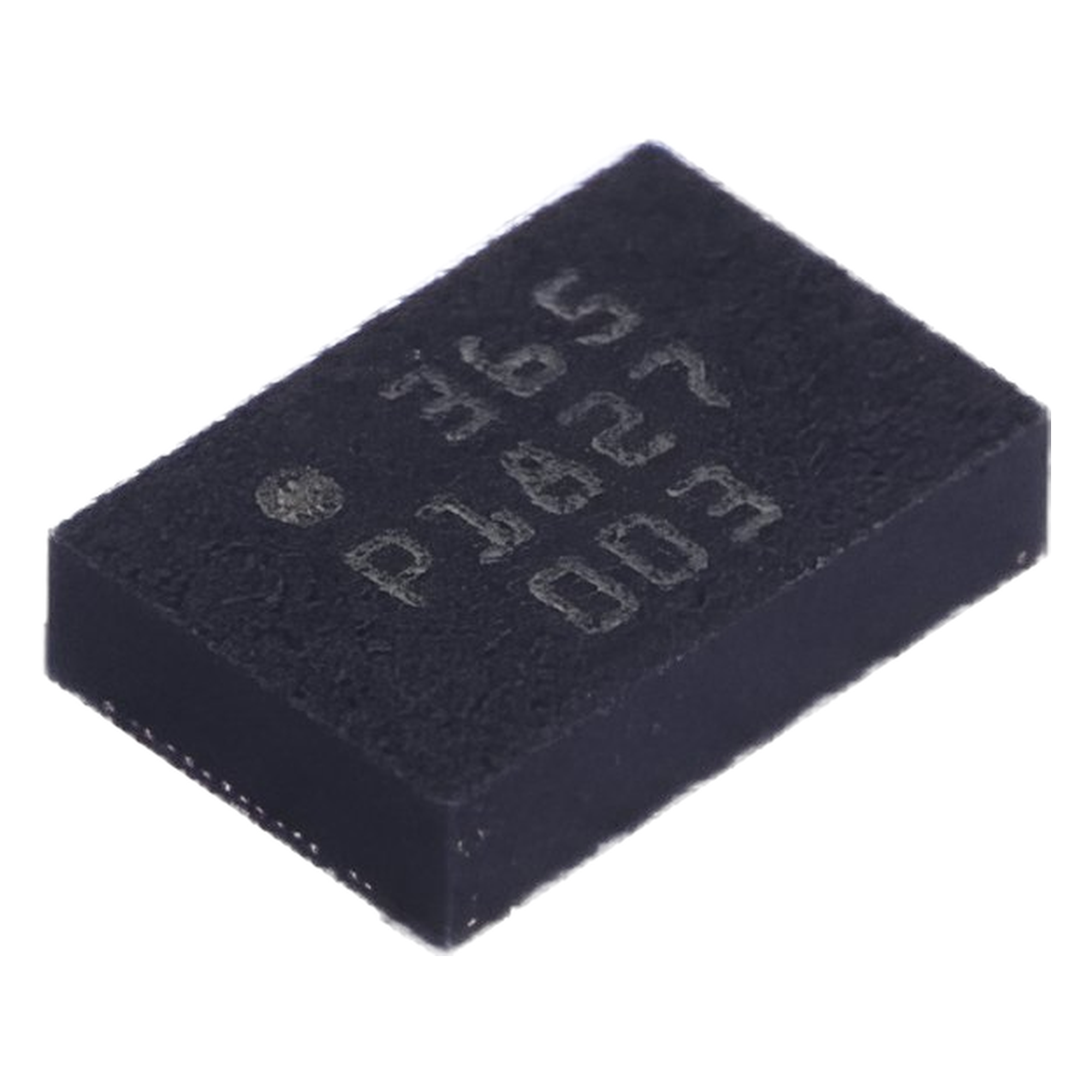

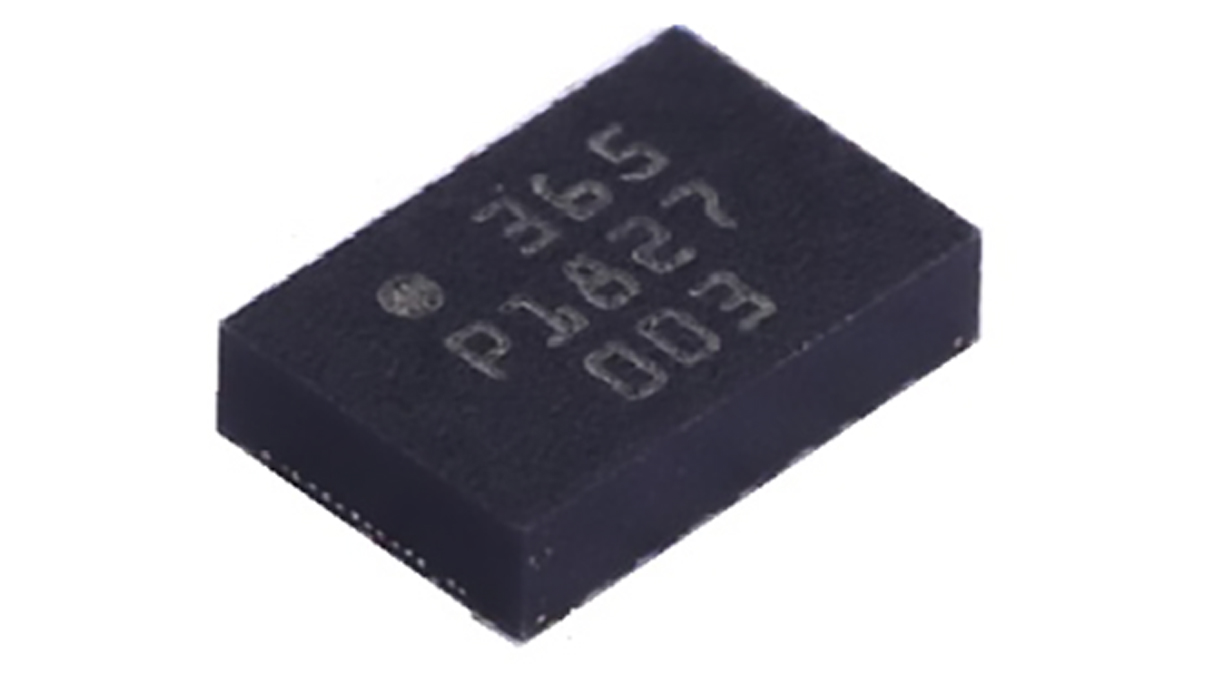

Bosch Sensortec BMI088 LGA-16 High-Precision Accel Gyroscope ROHS

The BMI088 from Bosch Sensortec is a high-performance 6-axis inertial measurement unit (IMU) designed for precision motion sensing in demanding environments. It integrates a low-noise 3-axis accelerometer and a high-stability 3-axis gyroscope, making it ideal for applications requiring accurate orientation, vibration measurement, and motion tracking.
Engineered for robustness, the BMI088 offers excellent temperature stability, low drift, and high resistance to mechanical stress and vibrations. This makes it especially suitable for drones, flight controllers, robotics, and industrial automation systems.

Key Features
Motion Sensing
3-axis accelerometer + 3-axis gyroscope
High vibration robustness (ideal for drones)
Low noise and high measurement accuracy

Accelerometer
Measurement range: ±3g, ±6g, ±12g, ±24g
Low noise density
High shock tolerance

Gyroscope
Measurement range: ±125°/s to ±2000°/s
Low drift and high stability
Excellent temperature performance

Interfaces
SPI (primary interface for high-speed applications)
I2C (optional for accelerometer)

Performance
Designed for high vibration environments
Low latency sensor data output
Independent accelerometer and gyroscope design

Power & Operating Conditions
Supply voltage: ~2.4V to 3.6V
Operating temperature: -40°C to +85°C

Package Information
Package Type: LGA (Land Grid Array)
Dimensions: Approx. 3.0 mm × 4.5 mm × 0.95 mm
Mounting Type: Surface Mount (SMD)
Pins: 16
Datasheet: -BMI088

Package Contents
1 × BMI088 6-Axis IMU Sensor

Applications
Flight controllers (INAV, Betaflight, Ardupilot)
Drones & UAV stabilization
Robotics and motion control
Industrial vibration monitoring
Navigation and positioning systems
Camera stabilization systems (gimbals)
