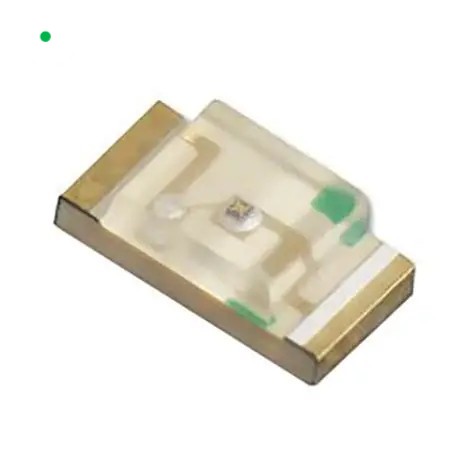

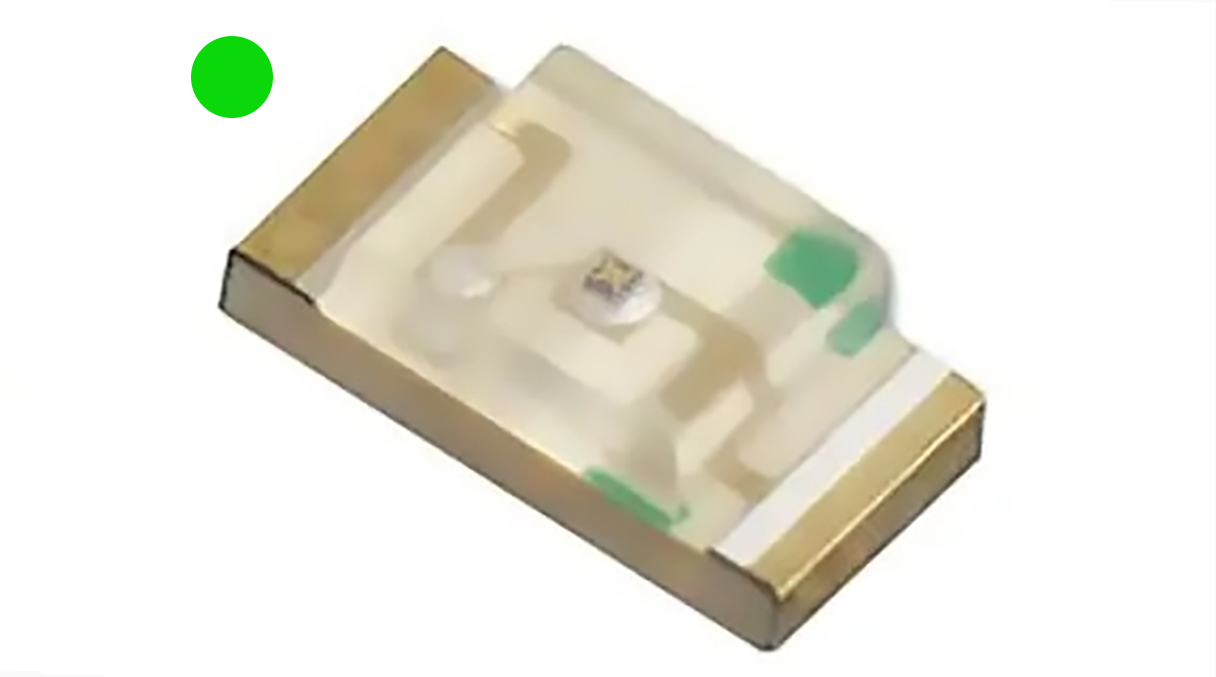

The 0603 Green SMD LED from Everlight Electronics (or equivalent brands) is a compact and energy-efficient light-emitting diode designed for status indication and display applications. It emits a bright green light with excellent visibility and low power consumption.
With its small 0603 package size, this LED is ideal for high-density PCB designs such as flight controllers, embedded systems, and IoT devices. It provides reliable performance, fast response, and long operational life.
Key Features
Optical Characteristics
Emission color: Green
Peak wavelength: ~520–535 nm
High brightness and visibility
Electrical Characteristic
Forward voltage: ~2.0V – 3.2V (depends on type
Forward current typical 5–20 mA
Low power consumption
Performance
Fast switching response
Long lifespan
Stable and consistent light output
Mechanical
Package size: 0603 (1.6 mm × 0.8 mm)
Surface Mount Device (SMD)
Compatible with automated assembly
Compatibility
Workswith microcontrollers (STM32, Arduino, etc.)
Easy integration using current-limiting resistor
Package Information
Type: SMD LED
Size Code: 0603
Mounting Type: Surface Mount (SMD)
Package Contents
1 × 0603 Green SMD LED
Applications
Status indicators (power, signal, activity)
Embedded systems and flight controllers
IoT devices and wearables
Consumer electronics
PCB debugging indicators
Usage Note
Always use a current-limiting resistor (e.g., 150Ω–1kΩ depending on supply voltage and brightness requirement)
