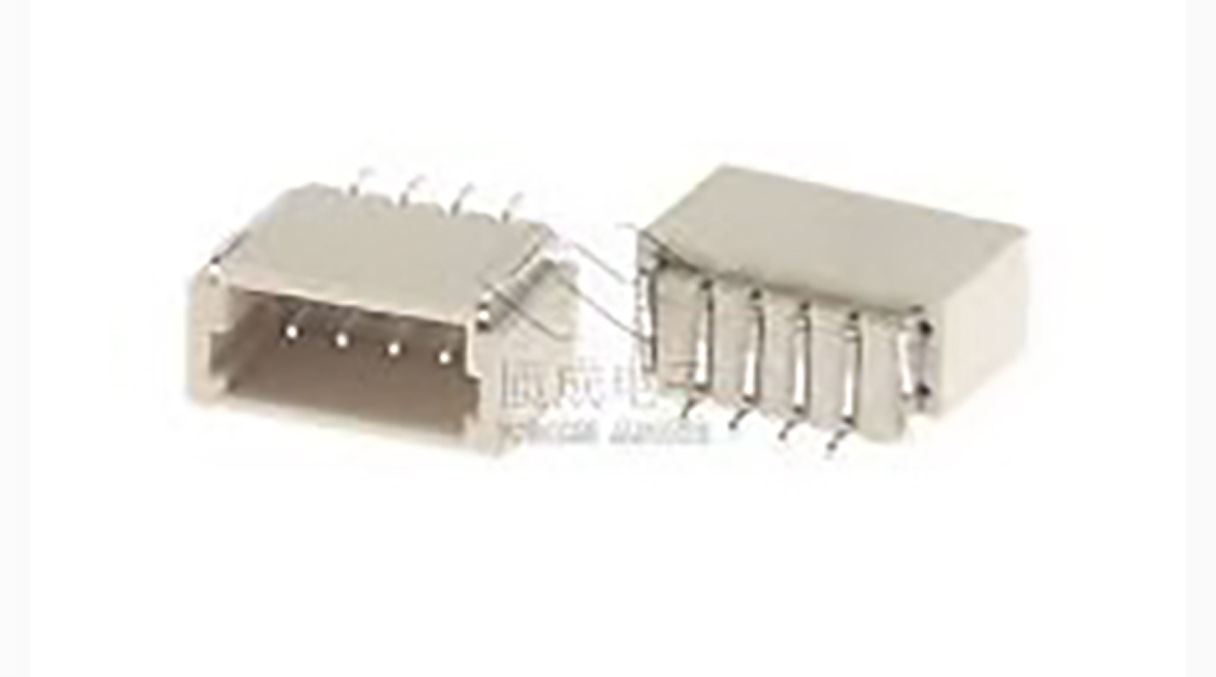

SH1.0 Horizontal SMT 4pin

The SH1.0 Horizontal SMT 4-Pin Connector from JST (or compatible SH1.0 series) is a compact, surface-mount board connector designed for reliable wire-to-board connections in space-constrained electronic applications.
Featuring a 1.0 mm pitch and low-profile right-angle (horizontal) design, this connector is ideal for compact devices such as flight controllers, GPS modules, cameras, and IoT hardware. It ensures secure mating with SH1.0 cables while maintaining excellent electrical contact and mechanical stability.

Key Features
Electrical Characteristics-
Number of pins: 4 Pin
Pitch: 1.0 mm
Rated current: ~1A (typical)
Rated voltage: ~50V

Mechanical Design-
Orientation: Horizontal (Right Angle)
Mounting type: Surface Mount (SMT)
Low-profile design for compact PCBs
Secure locking mechanism with mating cable

Performance-
Reliable contact and low contact resistance
Durable mating cycles
Stable mechanical retention

Compatibility-
Compatible with SH1.0 series cables
Widely used in drones, GPS modules, cameras, and sensors

Package Information-
Connector Type: Wire-to-Board
Series: SH1.0
Mounting Type: Surface Mount (SMT)
Orientation: Right Angle (Horizontal)

Package Contents-
1 × SH1.0 4-Pin Horizontal SMT Connector

Applications-
Flight controllers and RC electronics
GPS, UART, and I2C connections
Camera modules and FPV systems
Sensors and peripheral modules
Compact embedded and IoT devices

Usage Note-
Ensure correct pin alignment and polarity when mating with SH1.0 cables
Use proper footprint and soldering profile for reliable mounting
