Name: 8Mhz Crystal YSX531SL 5032 SMD
SKU: XT-AR-8MHZ-1.0
Availability: InStock

8Mhz Crystal YSX531SL 5032 SMD

₹20.00 incl. GST

An 8MHz 5032 SMD quartz crystal providing stable and accurate clock signals for microcontrollers and embedded applications.

Availability: 90 in stock

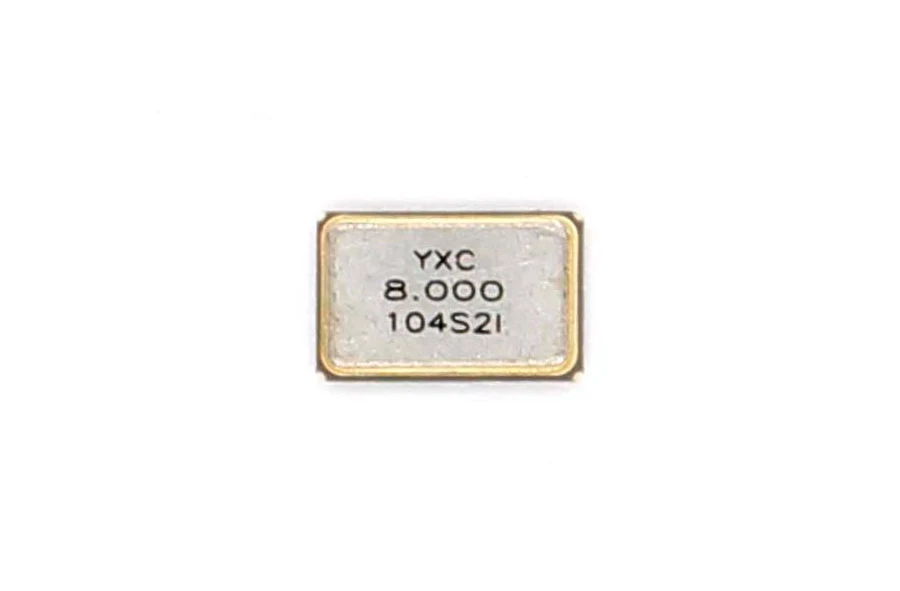

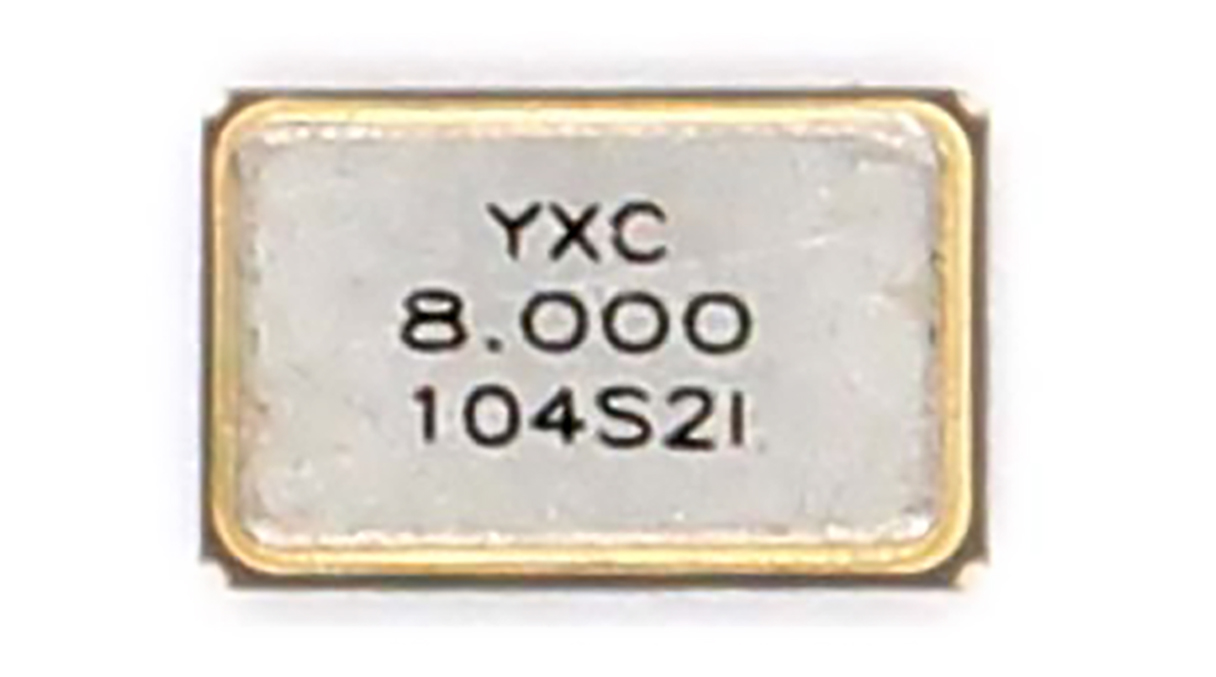

The YSX531SL 8MHz 5032 SMD Crystal from YXC (or equivalent series) is a high-stability quartz crystal resonator designed to provide a precise and reliable clock source for microcontrollers and embedded systems.
With its 5032 package (5.0 × 3.2 mm), this crystal offers excellent frequency accuracy, low drift, and stable oscillation performance. The 8MHz frequency is widely used in STM32 microcontrollers, communication modules, and timing circuits, making it ideal for flight controllers and IoT devices.

Key Features
Electrical Characteristics
Frequency: 8 MHz
Frequency tolerance: typically ±20 ppm
Load capacitance: typically 18 pF
ESR: low equivalent series resistance for stable oscillation

Performance
High frequency stability
Reliable startup behavior
Low phase noise
Stable across temperature variations

Mechanical
Package size: 5032 (5.0 mm × 3.2 mm)
Surface Mount Device (SMD)
Compact and robust design

Compatibility
Ideal for STM32 (HSE clock) and other MCU
Suitable for communication and timing circuits

Package Information
Type: Quartz Crystal Resonator
Size Code: 5032
Dimensions: Approx. 5.0 mm × 3.2 mm
Mounting Type: Surface Mount (SMD)

Package Contents
1 × 8MHz YSX531SL 5032 SMD Crystal

Applications
Microcontroller clock (STM32, Arduino, ESP)
Flight controllers (INAV, Ardupilot)
Embedded systems and IoT devices
Communication modules
Precision timing circuits

Usage Note
Use with load capacitors (~18–22 pF typical)
Place crystal close to MCU oscillator pins
Keep traces short and symmetric to reduce noise
Datasheet: -Crystal-YSX531SL-8Mhz
